Linetec enhances appearance and performance of Wausau windows for UW Medicine’s new Center for Behavioral Health and Learning

The recently opened Center for Behavioral Health and Learning (CBHL) at University of Washington (UW) Medicine in Seattle is the first of its kind to combine mental health care, integrated medical care and workforce training for this much-needed, in-demand specialty practice.

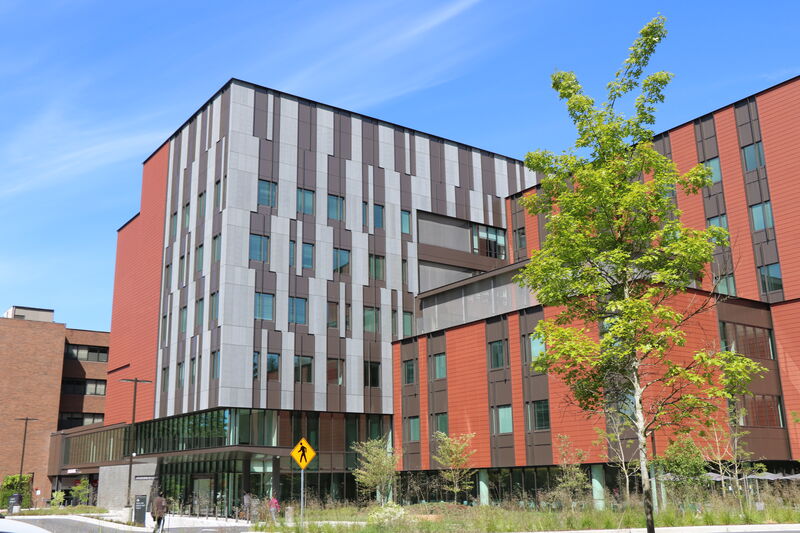

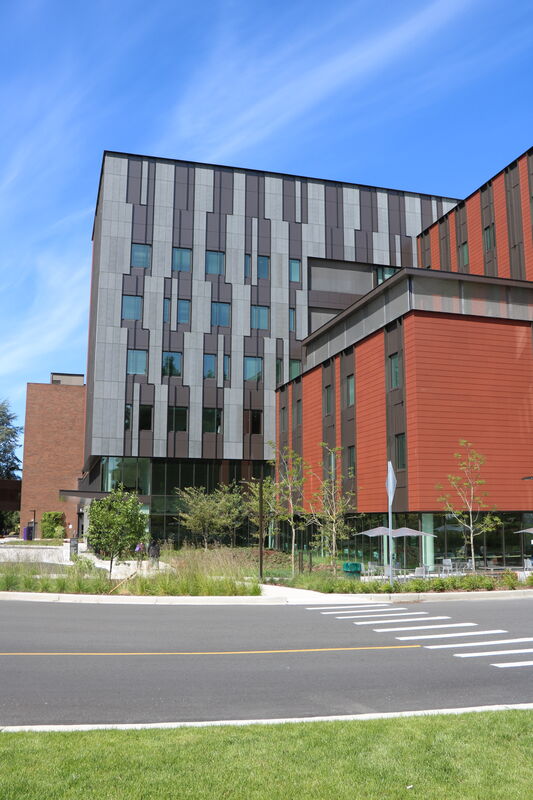

According to SRG + CannonDesign’s architectural team, the CBHL was designed to reinforce a new standard of behavioral health care with attention to scale, articulation, openness and warmth. The 150-bed, six-story, 184,000-square-foot building serves individuals struggling with both physical and behavioral health conditions. The facility expands the existing hospital and maximizes access to daylight and views, while assuring patient privacy, dignity and safety.

Supporting the project’s multiple goals, the architectural team selected Wausau 4000i-DT Series aluminum-framed, high-performance, behavioral care windows. Enhancing the CBHL’s welcoming appearance, Linetec finished 330 Wausau windows in a New Age Dark Bronze color. As a single-source partner, Linetec also provided the insulating polyamide thermal barriers to support the facility’s comfortable, calming, healing spaces.

Linetec and Wausau brand products are part of Apogee Architectural Metals. For more than 40 years, Wausau DT Series window products have answered the needs for behavioral care and psychiatric facilities across the U.S.

Prioritizing Quiet, Calm and Healthy Spaces

For UW Medicine CBHL, product, color and material selections were important to the project team. “We tried really hard to create a welcoming and noninstitutional environment with this facility,” said SRG + CannonDesign’s health care practice leader, principal and senior project planner, Lori Epler, AIA. “One of the ways we did that was through using the principles of trauma-informed design – bringing in a neutral and natural color palette, creating views to the outdoors, enhancing daylight wherever possible.”

Linetec achieved the intended aesthetic using a the 70% PVDF resin-based architectural mica coating. Mica coatings add vibrancy and visual appeal to the painted surface. The durable, finished aluminum meets the industry-leading AAMA 2605 standard for high-performance coatings and can withstand continuous, high-traffic needs of health care and medical facilities.

In compliance with the State of Washington’s requirements, the UW Medicine CBHL’s Wausau windows were manufactured with insulated, laminated, triple glazing; integral, between-glass blinds; and thermal barriers in the framing. The thermal barriers separate and insulate the exterior and interior aluminum framing members. This thermally broken framing system reduces energy and sound transmission to create comfortable indoor temperatures and calm, quiet spaces with natural light and outdoor views.

Wausau 4000i-DT windows can achieve sound transmission class (STC) ratings as high as 49, National Fenestration Rating Council U-factors as low as 0.34 and framing condensation resistance factors as high as CRF 60. Contributing to air quality, cleanliness and occupant health, windows with high a CRF reduce moisture on the interior surface, minimizing the opportunity for mold, mildew and microorganisms to grow. Good air quality can be especially important for children, seniors and people with chronic illnesses.

Selecting finishes that have no- or low-volatile organic compounds (VOCs) also supports a healthy indoor environment, provides long-lasting protection and offers colorful design choices. Applied under environmentally responsible, quality-controlled factory conditions, the VOCs present in liquid paint coatings are safely managed and destroyed by Linetec before the finished material arrives at the jobsite.

Working closely with the Washington-based building team, Benson Industries installed all the Wausau windows. Once installed, he windows’ protective finishes also minimize maintenance and repairs for the CBHL. At the end of their long life on the building, the aluminum material can be locally recycled. These performance-based attributes also may assist health care projects seeking certification through the U.S. Green Building Council’s LEED rating system and other sustainability and wellness programs.

Windows for Healing – Daylight, Fresh Air, Views

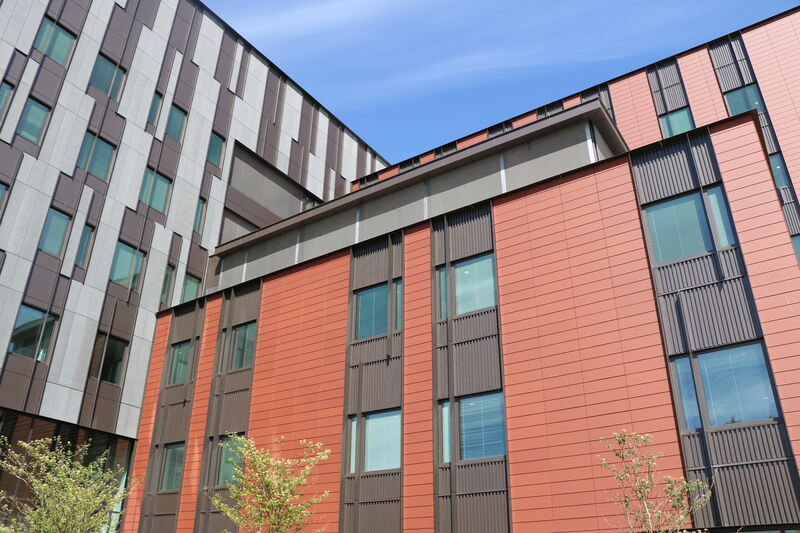

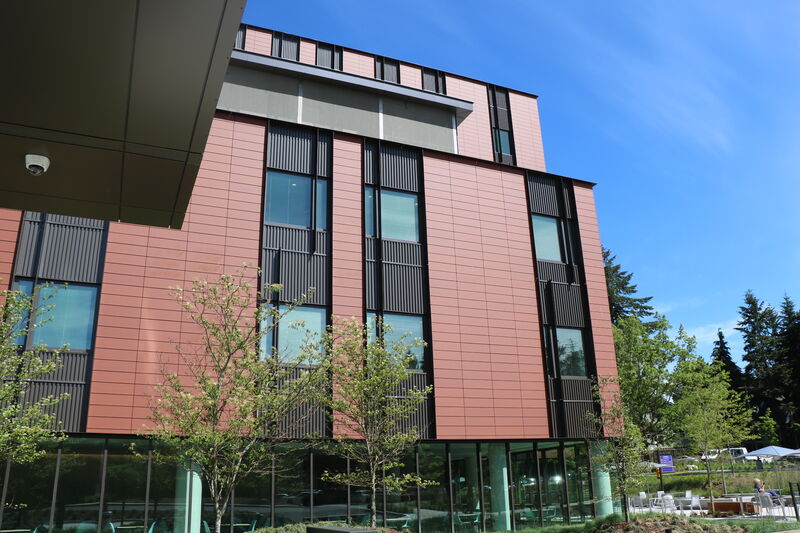

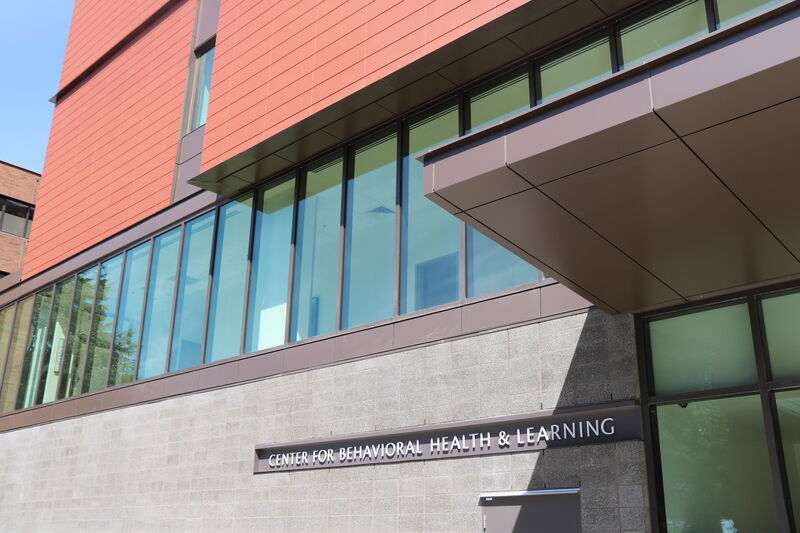

Large windows at UW Medicine CBHL allow natural light into the single-occupancy rooms. Engineered for behavioral care settings, Wausau DT Series windows withstand high impacts from the interior. This ensures they are suitable for containing patients, restricting their passage to unauthorized areas, or delaying and frustrating escape attempts.

Every behavioral health floor has its own patio or balcony where people can get fresh air. The fourth floor has a larger outdoor area with aerial views of the campus and surrounding neighborhood. The facility’s design also creates collaborative and inviting spaces for training new professionals, such as ground-level indoor and outdoor dining.

“Many of our patients will spend a substantial amount of time with us, and if you can’t go outside and get fresh air, that’s not good for your mental health, even under the best of circumstances,”

said UW School of Medicine’s professor and chair of the Department of Psychiatry and Behavioral Sciences, Jürgen Unützer, MD, MPH, MA.

Among his many responsibilities and achievements, Dr. Unützer also is a UW professor, board-certified psychiatrist and the founder of the Advancing Integrated Mental Health Solutions (AIMS) Center. He reminds people that “mental illness is not a life sentence, and patients can go on to have meaningful and successful lives.”

“The design of the building is rooted in the belief that the environment can significantly impact healing. We wanted to create spaces that feel safe, welcoming and uplifting, with plenty of natural light and access to nature. We also aimed to reduce the sense of isolation often felt in mental health facilities and promote a sense of community and support among patients,” said SRG + CannonDesign’s Epler.

She added, “While this building is highly specialized, it’s truly remarkable how welcoming and therapeutic it feels. It’s an inspiring space designed to foster hope in patients on their healing journey and to motivate students to reach their full potential as practitioners.”

Performance-Critical Considerations

“We gave considerable thought to designing rooms that would be conducive to the care and safety of our patients. Our goal was always to create an open and welcoming environment that would not have an institutional look and feel,” said Ryan Kimmel, MD, chief of psychiatry for UW Medical Center.

Tested for air and water resistance, structural integrity, condensation resistance and thermal cycling, Wausau 4000i-DT windows have an AAMA AW120 Performance Grade. In addition, they meet the AAMA 501.8 test standard, which subjects the windows to 2,000 foot-pounds of energy, as imparted by the human impact “drop test” apparatus, to simulate shoulder impact of a 200-pound person moving at 25 feet per second.

The 4-inch-deep aluminum mitered and corner-blocked frame and vent construction of these Wausau windows accommodates triple glazing with internal hinged access panels. Other safety features include concealed hinges, tamper and ligature-resistant hardware components, and tamper-resistant interior glazing materials. No vent joinery is exposed to the exterior. The integral between-glass blinds offer privacy control with concealed raise/lower cords and optional occupant-controlled tilt.

Wausau window products also meet the high-performance levels necessary for such stringent requirements as:

  • California Department of Health Care Access and Information (HCAI), Office of Statewide Hospital Planning and Development (OSHPD) Building Standards Unit
  • Florida Product Approval (FPA)
  • New York State Office of Mental Health (NYS-OMH)
  • S. Department of Defense (DoD)
  • S. General Services Administration (GSA) Interagency Security Committee (ISC)
  • U.S. Department of Veterans Affairs (VA)

Building for Hope and Recovery

Opened in May 2024, the CBHL was highlighted as contributing to UW Medical Center’s recognition among the 2024 best hospital in America by Becker’s Hospital Review. Located adjacent to an existing acute care hospital on the northwest campus, the CBHL supports a full continuum of clinical services ranging from effective medication management and psychotherapies to state-of-the-art neuromodulation treatments, as well as medical and surgical care for individuals with behavioral health disorders.

Emphasizing the significant and urgent need for the CBHL and its services, UW Medicine shared several compelling statistics:

Many patients who need long-term care are placed in large, aging facilities, far from their friends and family. Approximately 1.26 million people in Washington State live with a mental health disorder and yet only about a one-third receive the care they need. Nearly half of the state’s counties do not have a single practicing psychiatrist or psychologist and community behavioral health centers turn clients away when there are not enough clinicians. In King County, which includes Seattle, nearly one in four people have been turned away when they are in crisis or have other physical medical conditions.

UW Medicine CBHL presents a modern, comfortable, facility that increases the region’s capacity to treat psychiatric patients, including those who need more time to respond to treatment or care for additional physical medical conditions. At the CBL, UW experts also are preparing the next generation of mental health professionals and are offering patient- and family-centered care programs to help patients transition back to their communities.

“We designed it as a facility where we can teach, and we can inspire the next generation of professionals,” said Dr. Unützer. “It gives me hope. It will give our patients and their families hope. Hope that you can have really good quality, state-of-the-art care and can live your best life.”

“What excites me most is that we are really creating a new model of care for hospital-based behavioral health services,” concluded Cindy Hecker, UW Medical Center’s CEO. “In designing this building, our focus was on creating a welcoming and safe environment to promote healing and recovery.”

University of Washington (UW) Medicine, Center for Behavioral Health and Learning (CBHL),
1550 North 115th St., Seattle, WA  98133;
https://psychiatry.uw.edu/clinical-care-consultation/center-for-behavioral-health-and-learning/

  • Glazing contractor – behavioral care windows: Benson Industries; Kent, Washington; https://www.bensonglobal.com
  • Manufacturer – behavioral care windows: Wausau Window and Wall Systems 4000i-DT window products, part of Apogee Enterprises, Inc.’s Architectural Metals segment; Wausau, Wisconsin; http://www.wausauwindow.com
  • Aluminum finishing services – behavioral care windows: Linetec, part of Apogee Enterprises, Inc.’s Architectural Metals segment; Wausau, Wisconsin
  • Photos: courtesy of Apogee Architectural Metals
  • Video – UW Medicine, opening: https://www.youtube.com/watch?v=dM-5C4dLwiE
  • Video – SRG + CannonDesign: https://vimeo.com/1002790173
